Aluminum Electric Diaphragm Pump with 10.5m³/h Flow Rate and 1 Year Warranty for Agriculture

Aluminum Electric Diaphragm Pump with 10.5m³/h Flow Rate and 1 Year Warranty for Agriculture
Aluminum Electric Diaphragm Pump with 10.5m³/h Flow Rate and 1 Year Warranty for Agriculture Aluminum Electric Diaphragm Pump with 10.5m³/h Flow Rate and 1 Year Warranty for Agriculture Aluminum Electric Diaphragm Pump with 10.5m³/h Flow Rate and 1 Year Warranty for Agriculture Aluminum Electric Diaphragm Pump with 10.5m³/h Flow Rate and 1 Year Warranty for Agriculture Aluminum Electric Diaphragm Pump with 10.5m³/h Flow Rate and 1 Year Warranty for Agriculture Aluminum Electric Diaphragm Pump with 10.5m³/h Flow Rate and 1 Year Warranty for Agriculture

Imagem Grande :  Aluminum Electric Diaphragm Pump with 10.5m³/h Flow Rate and 1 Year Warranty for Agriculture

Detalhes do produto:
Lugar de origem: Xangai, China
Marca: RV
Número do modelo: RVE-A-F3311-T
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 2
Preço: US$2,649
Contato

Aluminum Electric Diaphragm Pump with 10.5m³/h Flow Rate and 1 Year Warranty for Agriculture

descrição
Pressão da saída máxima: 0,6MPa, 6bar Taxa de fluxo máximo: 10.5M3/h
Max Suction Lift: 3m Potência do motor: 3.0kW (padrão), 4,0kW (opcional)
Velocidade do motor: 1450r/min Tamanho da entrada de fluido: Rosca ou flange de 1 polegada
Tamanho da saída de fluido: Rosca ou flange de 1 polegada Peso: 77KGS (bomba de alumínio)
Material: Alumínio Tipo de motor: Prova de explosão
Fonte de energia: Elétrico Estrutura: Bomba de diafragma
Função: Líquido do transporte Tamanho da entrada/saída: 1 polegada
Tipo de conexão: rosqueado ou flange
Destacar:

Aluminum Electric Diaphragm Pump

,

10.5m³/h Flow Rate Diaphragm Pump

,

1 Year Warranty Electric Pump

Aluminum Electric Double Diaphragm Pump for Agriculture
Product Specifications
Specification Value
Max Outlet Pressure 0.6Mpa, 6bar
Max Flow Rate 10.5m³/h
Max Suction Lift 3m
Motor Power 3.0KW standard (4.0KW optional)
Motor Speed 1450r/min
Fluid Inlet Size 1 inch Threaded or Flange
Fluid Outlet Size 1 inch Threaded or Flange
Weight Stainless steel: 122 KGS
Aluminum: 77 KGS
Carbon steel: 115 KGS

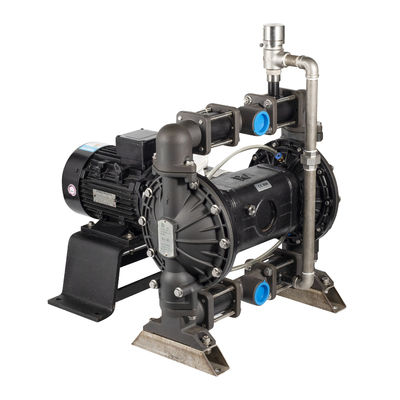

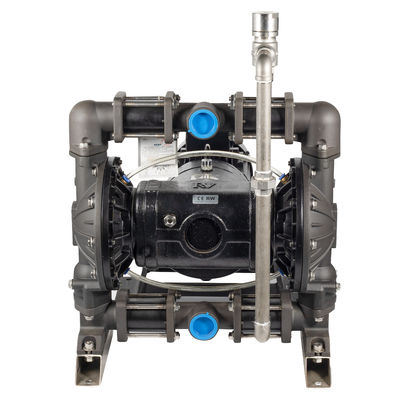

Product Images
Aluminum Electric Diaphragm Pump with 10.5m³/h Flow Rate and 1 Year Warranty for Agriculture 0
Aluminum Electric Diaphragm Pump with 10.5m³/h Flow Rate and 1 Year Warranty for Agriculture 1
Our Advantages
Aluminum Electric Diaphragm Pump with 10.5m³/h Flow Rate and 1 Year Warranty for Agriculture 2
Packing & Delivery
Aluminum Electric Diaphragm Pump with 10.5m³/h Flow Rate and 1 Year Warranty for Agriculture 3
Aluminum Electric Diaphragm Pump with 10.5m³/h Flow Rate and 1 Year Warranty for Agriculture 4
Aluminum Electric Diaphragm Pump with 10.5m³/h Flow Rate and 1 Year Warranty for Agriculture 5
Company Profile
Aluminum Electric Diaphragm Pump with 10.5m³/h Flow Rate and 1 Year Warranty for Agriculture 6

Shanghai Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. We have been awarded as High-Tech Enterprise and Credit Company in consecutive years.

We specialize in diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, and various control valves. Our products have been granted more than 40 patents, including 10 invention patents.

We hold necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, and SGS. Our products serve chemical, painting & coating, water treatment, petroleum, environmental protection, and food/pharmaceutical industries.

We maintain long-term relationships with enterprises like BASF, Bayer, and SAMSUNG, and our products are exported to over 70 countries.

Available Materials & Specifications
  • Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel
  • Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N
  • Available inlet/outlet sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
  • Connection types: Threaded (1/4" to 1-1/2") or Flanged (1/2" to 3")
Our Service
Aluminum Electric Diaphragm Pump with 10.5m³/h Flow Rate and 1 Year Warranty for Agriculture 7
  • All inquiries replied within 24 working hours
  • Professional design and production team
  • Standard export wooden case packaging (non-fumigation)
  • Fast after-sales service
Frequently Asked Questions
What is MOQ?
1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
What's the payment method?
D/P, T/T, Western Union - please confirm with us for exact orders.
What is the delivery time?
Depends on quantity. Generally 1-7 working days.
How are products packaged?
Cartons with foam inside & wooden case & pallet.
How are products delivered?
By international express or sea shipping.
What is the warranty period?
15 years warranty for air motor, 5 years for pump body.
Can products be made to different standards?
Yes, we can produce according to custom requirements.
