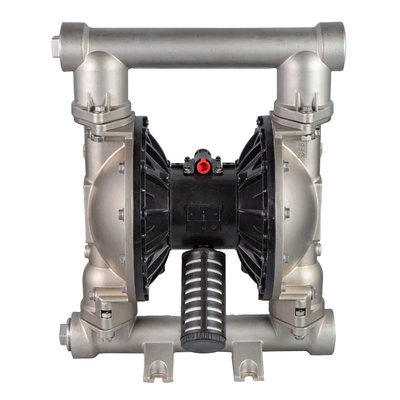

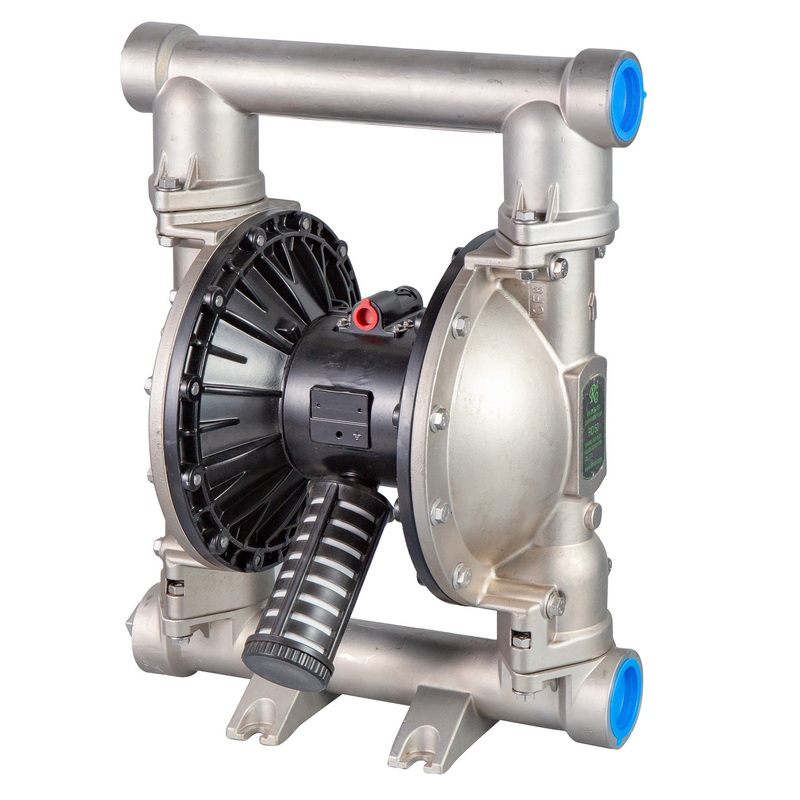

2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater

2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater
2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater

Imagem Grande :  2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater

Detalhes do produto: Condições de Pagamento e Envio:
Quantidade de ordem mínima: 2
Preço: $1,694.70
Contato

2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater

descrição
Pressão de trabalho máximo: 120 psi (0,84mpa, 8,4bar) Taxa de fluxo máximo: 150gpm (570pm)
Velocidade máxima recíproca: 145cpm Altura máxima de sucção: 5m
Grão máximo permitido: 0,24in. (6mm) Max Air Consumption: 140SCFM (70L/S)
Tamanho da entrada de ar: 1/2 in Tamanho da saída de ar: 3/4 dentro
Tamanho da entrada de fluido: 2in Tamanho da saída de fluido: 2in
Peso: 47KGS Material da bomba: Aço inoxidável
Material do diafragma: Teflon, Santoprene, Viton, Hytrel, Buna-N Tipo de conexão: Outros, de algodão ou de algodão
Tamanhos disponíveis: 1/4 ", 3/8", 1/2 ", 3/4", 1 ", 1-1/2", 2 ", 3"
Destacar:

2 inch stainless steel diaphragm pump

,

stainless steel wastewater pump 150gpm

,

120 psi diaphragm pump for wastewater

2 Inch Stainless Steel Pneumatic Diaphragm Pump with SP Ball for Wastewater/Drinking Water Treatment
Product Specifications
Max Working Pressure 120 psi (0.84Mpa, 8.4bar)
Max Flow Rate 150gpm (570pm)
Max Reciprocating Speed 145cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.24in. (6mm)
Max Air Consumption 140scfm (70L/S)
Air Inlet Size 1/2 in
Air Outlet Size 3/4 in
Fluid Inlet Size 2in
Fluid Outlet Size 2in
Weight Stainless Steel pump: 47KGS
2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 0 2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 1
Product Advantages
2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 2
Packaging & Delivery
2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 3 2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 4 2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 5 2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 6

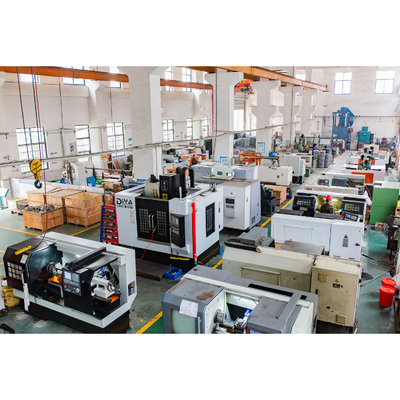

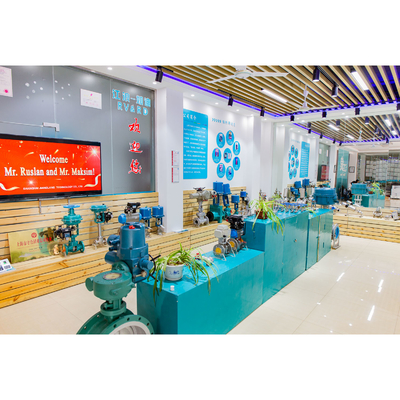

Company Profile
2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 7
Shanghai Jiangliang Technology Co., Ltd

Headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. Recognized as a High-Tech Enterprise and Credit Company for consecutive years.

Product Range
  • Pneumatic Diaphragm Pumps
  • Electric Diaphragm Pumps
  • Piston Pumps
  • Powder Pumps
  • Sanitary Pumps
  • Diaphragm Pumps with Leakage Detector Controller
  • Pneumatic Diaphragm Regulating Valves
  • Control Valves
  • Sequencing Valves
Certifications & Standards
  • 40+ patents including 10 invention patents
  • Participated in setting national standards for pneumatic diaphragm pumps (SH/T 3191-2017)
  • Certifications: TS.A, CE, ATex, ISO9001, SGS
Materials & Configurations
  • Wetted parts materials: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel
  • Diaphragm materials: Teflon, Santoprene, Viton, Hytrel, Buna-N
  • Available sizes: 1/4" to 3"
  • Connection types: Threaded or flanged
Our Service
2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 8
  • 24-hour response to all inquiries
  • Professional design and production team
  • Standard export packaging (non-fumigation wooden cases)
  • Fast after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples available with cost deductible from future orders.
Q: What's the payment method?
A: D/P, T/T, Western Union - confirmed with exact order.
Q: What is the delivery time?
A: Typically 1-7 working days depending on quantity.
Q: What about packaging?
A: Cartons with foam, wooden cases, or pallets as required.
Q: How are products delivered?
A: International express or sea freight.
Q: What is the warranty period?
A: 15 years for air motor, 5 years for pump body.
Q: Can products be made to different standards?
A: Yes, we can customize according to specific requirements.
